Shuttering Plywood

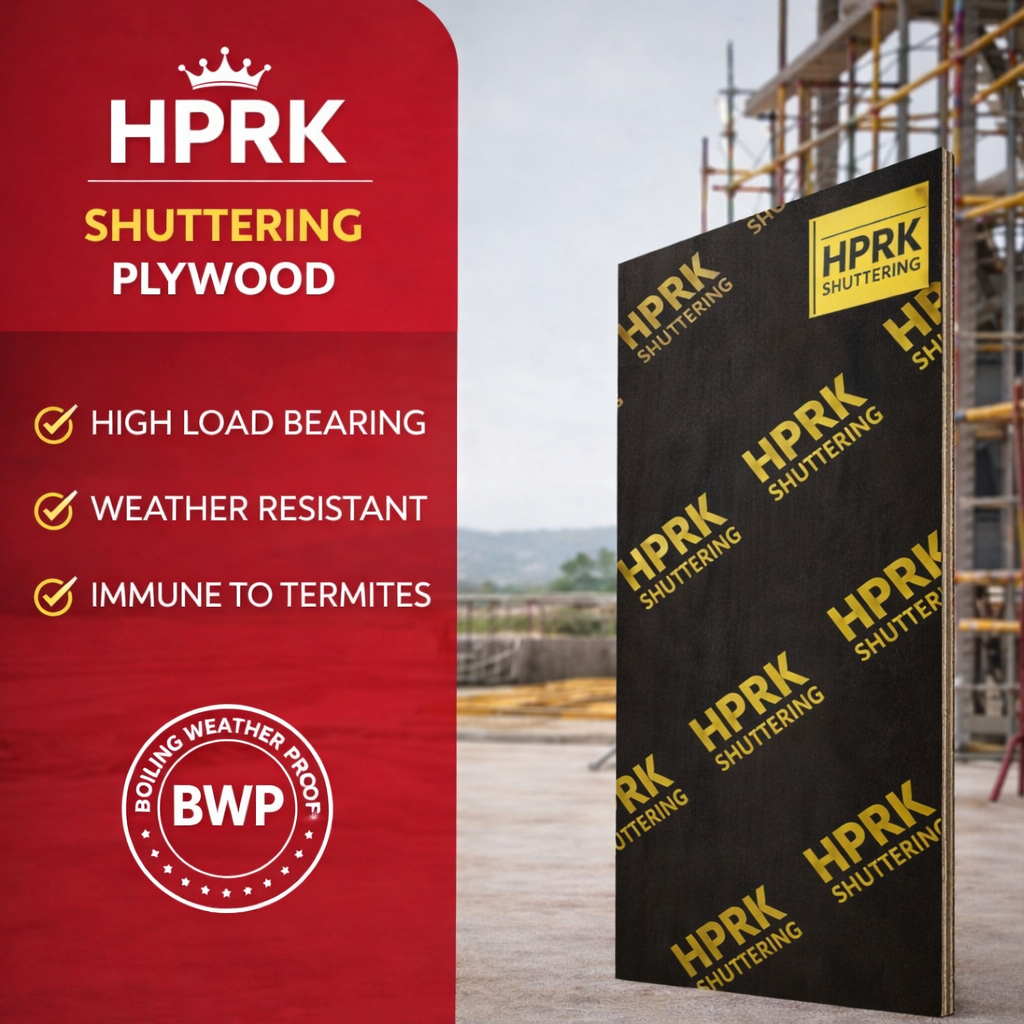

HPRK FormShield – Shuttering Plywood
HPRK FormShield is a Super Premium Shuttering (Formwork) Plywood, specially developed for heavy-duty concrete shuttering applications requiring high load-bearing strength, excellent surface finish, and multiple reuse cycles. Manufactured using high-density hardwood veneers and bonded with fortified Phenol Formaldehyde (PF) resin, it delivers outstanding durability under extreme site conditions.
The plywood is coated with a high-quality phenolic film on both sides, providing superior resistance to water, cement slurry, abrasion, and chemicals, while ensuring a smooth and uniform concrete finish.
- Heavy-Duty Construction Grade
- Phenolic Film Faced on Both Sides
- High Load-Bearing Strength
- Super Premium Grade Product.
- Excellent Reusability Cycles
- Resistant to Water, Cement & Chemicals
- Strong Hardwood Core
Available In;
- 12mm
- 15mm
- 18mm
- 21mm
Built for Repeated Use & High Concrete Pressure
HPRK FormShield Shuttering Plywood is engineered to perform reliably under high concrete pressure, vibration, and rough handling at construction sites. The film-faced surface prevents cement adhesion and water absorption, enabling easy stripping and reuse without surface damage.
Its gap-free, high-density hardwood core provides excellent rigidity, reduced deflection, and long service life, making it ideal for large-scale residential, commercial, and infrastructure projects.
Available in standard 8×4 ft sheets, it is suitable for all types of formwork systems.
⇒ Key Features of Shuttering Plywood,
High strength for slab, beam & column formwork
Phenolic film coating for smooth concrete finish
High resistance to moisture and chemicals
Strong edge bonding for longer life
Precision-calibrated thickness
Excellent dimensional stability
Easy handling and fast installation
Cost-effective due to multiple reuse cycles
⇒ Ideal Applications of Shuttering Plywood,
Concrete slabs & decks
Columns & beams
Foundations & footings
Retaining walls
Bridges & flyovers
Residential & commercial buildings
Infrastructure & industrial construction
Where strength, durability, and reusability are critical, HPRK FormShield Shuttering Plywood delivers consistent, site-proven performance.
Buy “HPRK Shuttering Plywood” at the Best Price
HPRK Industries offers transparent and competitive pricing across India. Contractors and builders can easily enquire or purchase shuttering plywood by selecting the required thickness and quantity.
Choose HPRK FormShield for reliable formwork solutions that perform under pressure and reduce overall construction costs.
Features & USP's
- Super Premium Shuttering Grade Product
- Phenolic Film Faced (Both Sides)
- Preservative-Treated Core
- Double Surface Sanding for Superior Surface Finish
- High Load Bearing Capacity
- Excellent Reuse Potential
- Lesser Tendency to Spark and Ignite
- Easy Workability & Machining
- Waterproof & Chemical Resistant
- High-Density Hardwood Core
- Only Ply that Conforms to Standards IS
- Both Side Calibrated
- Smooth Concrete Finish
- Strong & Durable Edges
- Pre Composed Core and Panels to Reduce Gaps
Application's
Concrete shuttering, slabs, beams, columns, foundations, walls, bridges, flyovers, residential projects, commercial buildings, industrial structures, and infrastructure development.
Technical Specification's
Grade
Shuttering / Film Faced
Face
Phenolic Film
Core
High-Density Hardwood
Length
+2~5 MM
Thickness Tolerance
+/-0.25 MM
Weather Calibrated
Both Side Calibrated
Squareness
0.30%
Density
775 ~ 825 Kg/m3
Moisture Content
5% ~ 12%
Ply Overlap
NIL on Top Core
Swelling % (24 Hrs)
4% ~ 6%
Screw Holding Strength
Above 2000 N
Edge Straightness
0.30%
No. of Ply
4mm – 3 Core (5 Ply) 6mm – 3 Core (5 Ply) 9mm – 5 Core (7 Ply) 12mm – 7 Core (9 Ply) 16mm – 11 Core (13 Ply) 19mm – 13 Core (15 Ply)
Core Gap
NIL / Gap-Free
Swelling (24 Hrs)
4% ~ 6%
Moisture Resistant Test
Excellent
Nail Holding Strength
Above 500 N
Species Used
Selected Hardwoods
Back
Phenolic Film
Size of Plywood
2440 x 1220 mm
Width
+2~5 MM
Face Veneer Thickness
0.40 MM
Glue Used
Urea Formaldehyde / Modified Resin
